Outdoor Luminaire Controller ADSLC-1
Outdoor Lighting Controller
Power Line 및 Internet 또는 Mobile Network를 통하여 가로등 제어 Network를 구축·제어하며, HID 및 LED Lamp의 On/Off 및 Dimming을 제어합니다.
ADSLC1-LCADSLC1-LPADSLC1-DLADSLC1-LVADSLC1-HPS
제품특징
- HID Lamp Two Step Dimming 제어 및 On/Off 제어 가능 모델
- PWM 0~10V를 통한 LED Lamp 제어 가능 모델
- 전 모델 전기 환경 변화(전력, 전류, 온도 등) 측정 가능
- 전 모델 LonMark 표준 만족, LonMark Certificate 보유
Product Specifications
| Item | LED PWM Dimming (ADSLC1-LC) | LED PWM Dimming OC. (ADSLC1-LP) | DALI Dimming (ADSLC1-DL) | LED Voltage Dimming (ADSLC1-LV) | HID/HPS Lamp (ADSLC1-HPS) |
|---|---|---|---|---|---|
| Max Rated Current in ON/OFF Power Section | 1(4)A | 1(4)A | 1(4)A | 1(4)A | 4A |
| Lamp Max Peak Current | 20A | 20A | 20A | 20A | 200A |
| Max Rated Voltage in ON/OFF Power Section | AC100V~AC240V | AC100V~AC240V | AC100V~AC240V | AC100V~AC240V | AC100V~AC240V |
| Voltage In Control Output | DC12V | DC35V (OC.) | DALI 16V | DC 0V ~ DC10V | - |
| Max Current in Control Output | 10mA | 10mA | 250mA | 6mA | 6mA |
| Environment Conditions | -20 ~ 50℃, MAX 95% RH | ||||
| Communication | LonWorks PLC, Standard Protocol (LonMark) |
Dimension

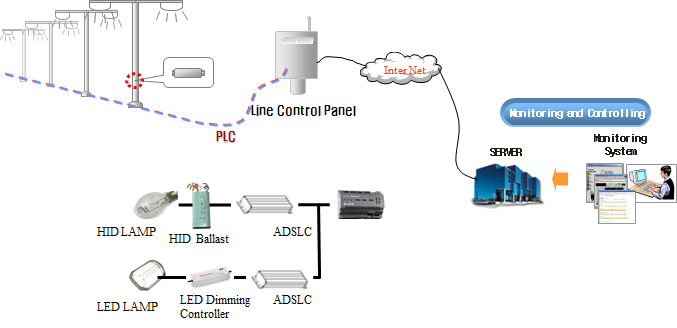

System Configuration
