Power Line及びInternetまたはMobile Networkを通じて街路灯の制御Networkの構築と制御

HIDとLED Lamp On/ Off及びDimming制御

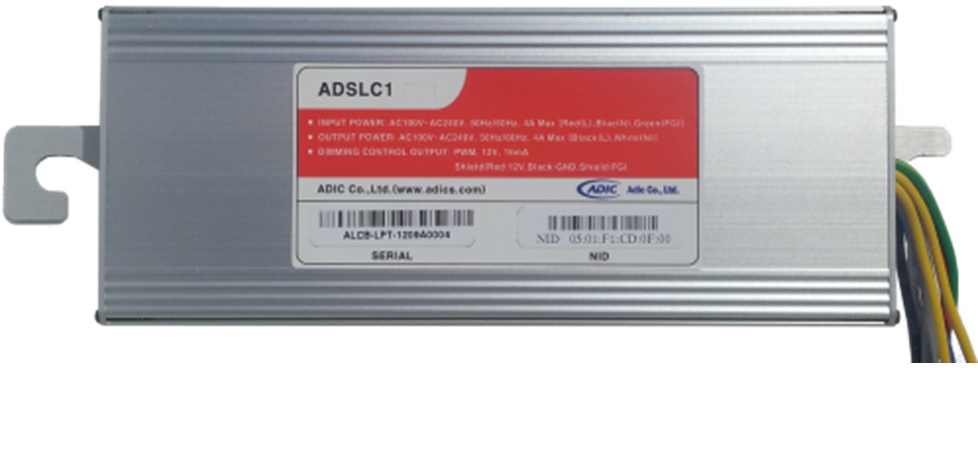

ADSLC-1

特徵
  HID Lamp Two Step Dimming制御とOn/ Off制御可能なモデル
  PWM0〜10Vを使用したLED Lamp制御可能なモデル
  全モデルの電気環境の変化(電力、電流、温度など)の測定が可能
  全モデルLonMark標準満足、LonMark Certificate保有
  總務省 發行 certificate 保有

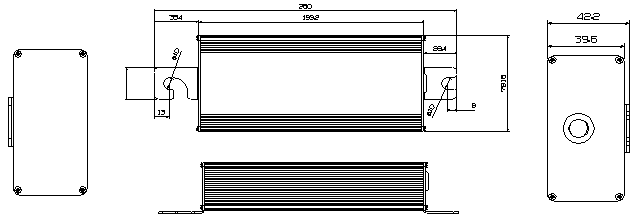

寸法
仕樣

Item

LED PWM Dimming

LED PWM Dimming OC.

DALI Dimming

LED Voltage Dimming

HID,HPS LAMP

Model

ADSLC1-LC

ADSLC1-LP

ADSLC1-DL

ADSLC1-LV

ADSLC1-HPS

Max Rated Current in ON/OFF Power Section

1(4)A

1(4)A

1(4)A

1(4)A

4A

Lamp Max Peak Current

20A

20A

20A

20A

200A

Max Rated Voltage in ON/OFF Power Section

AC100V~AC240V

AC100V~AC240V

AC100V~AC240V

AC100V~AC240V

AC100V~AC240V

Voltage In Control Output

DC12V

DC35V (OC.)

DALI 16V

DC 0V ~ DC10V

-

Max Current in Control Output

10mA

10mA

250mA

6mA

6mA

Environment Conditions

-20 ~ 50, MAX 95% RH

Communication

LONWORKS PLC

Standard PROTOCOL(LONMARK)

Outdoor Luminaire Controller

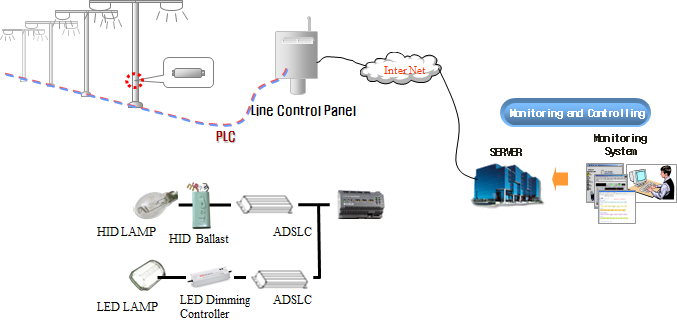

System 構成
