PLC-33 -PL3120 CPUを搭載しており、LonTalk Protocol(ANSI/EIA 709.2)を使うPLC(Power Line Communication) 製品に含まれる Core Moduleです。

製品の特徴
  LonWorks 電力線通信 Core Module
  PL3120 Full I/O 支援
  クリスタル 内蔵
  製品実装のためのサイズ最適化設計
  1.27mm Pitch 29 pin 標準規格適用



PLC-33

製品仕様

Item

Description

Processor Type

PL3120

Transceiver Type

Processor Clock

10MHz

I/O

12 Pin full I/O support

Comm. Media

PLC(Power Line Communication)

POWER

5VDC, 12VDC Input

Protocol

ANSI/EIA/CEA 709.1 Lon Talk Protocol, ANSI/EIA/CEA 709.2 Power Line

Comm. Signal current

1A

Output Power

7Vp-p, 1A

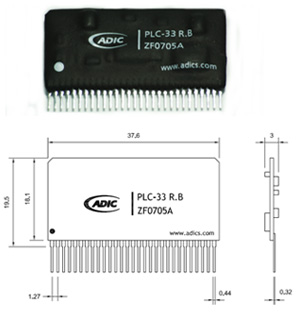

Dimension

37.6(W) x 19.5(H) x 3(D) mm

Operation
Temp./Humidity

-40 ~ +85℃, operating and non-operating 20 ~ 95% RH@50℃

Mounting

Wall mount type or Din Rail Base Plate type
