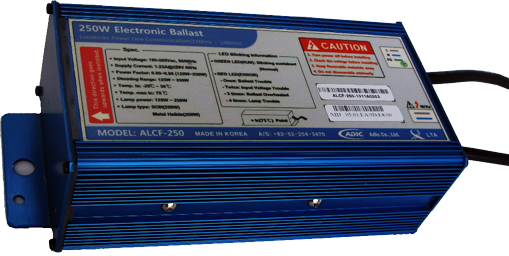

ALCF-250 is a
high-efficiency electronic smart ballast, with
dimming control and embedded power-line
communication feature, gives a significant energy
saving and effective street light
controllability.
Provides effective integrated control system and
self-diagnostic and breakdown prevention by remote
controlling/monitoring.
ALCF-250
product Features
Resonance half-bridge type, seamless dimming from 50% to 100%.
Protection for wire breaking/short (Micom
embedded).
Electric wire breaking monitoring,
lamp/ballast self diagnostics. (can be
linked with line controller)
Various protection circuit/features
(overvoltage, transient control and
self-diag)
High power factor(Max 0.98).
Lonworks PLC technology ready.
Benefit
Saves energy by high power factor with
illumination level control(dimming).
Lamp, ballast, power line monitoring – quick
and appropriate service and safety.
With PLC embedded, easy to monitor/control
from remote.
Prevents flicker problem with frequency
control.
PLC based – reduced installation and
maintenance fee, reuse old equipment.
Product Specifications
Item
Description
Remarks
Input
Voltage
180Vac ~
265Vac
50Hz/60Hz
Input
Current
1.23A @220Vac
60Hz
Power
Factor
0.90~0.98(125W~250W)
Dimming Range
125W~250W
Efficiency
89.5%(125W)~92.5%(250W)
Lamp
Power
125W~250W
Lamp
Type
Son(250W),
CDM(250W), Metal Halide(250W)
Lamp
Operating Frequency
75Hz
Temperature Ta
-20℃ ~ 50℃
Temperature Max Tc
75℃
Communication
LonWorks Power
Line Communication
115KHz, 132KHz

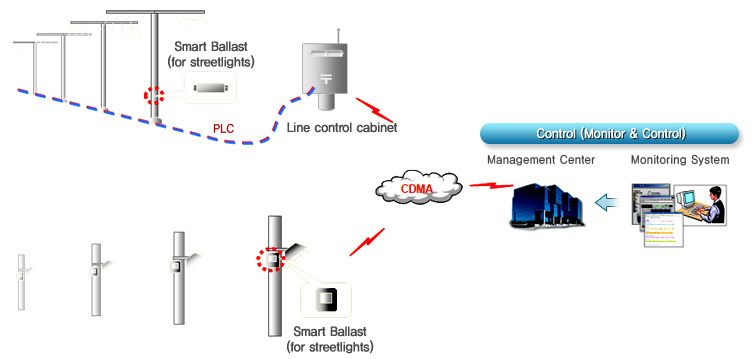

System Configuration
