Enables control of streetlights by forming streetlight network through power line communication and using internet or mobile wireless network.

Provides a function of ON/OFF and dimming control for HID and LED lamps

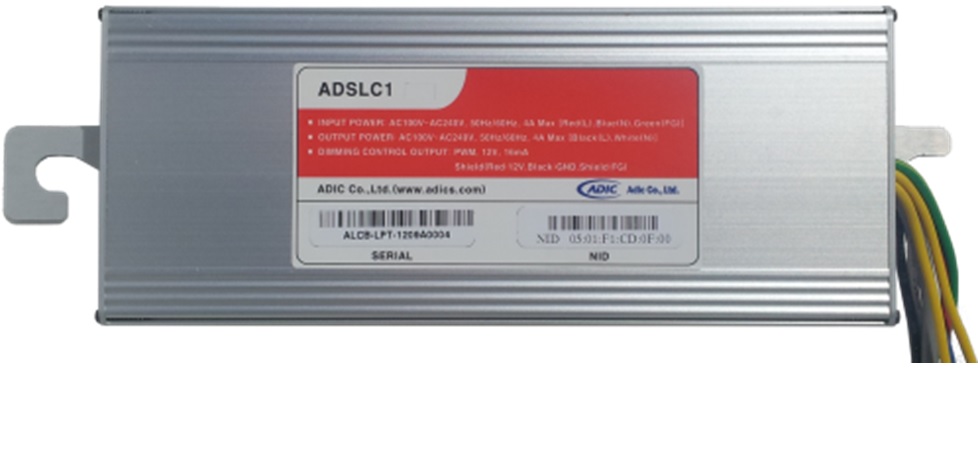

ADSLC-1

Product Features
  Model for HID lamps provide two-step dimming control using ON/OFF output.
  Models for LED lamps enable dimming control through PWM 0~10V DC output.
  All models are able to detect environment changes in power consumption, current, temperature, etc.
  All models comply with LonMark Standards.

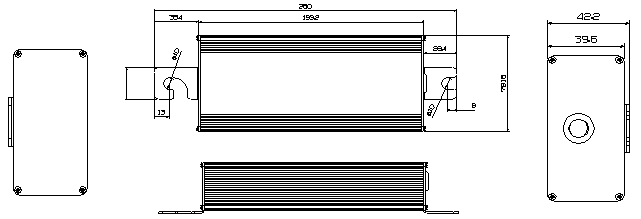

Dimension
Product Specifications

Item

LED PWM Dimming

LED PWM Dimming OC.

DALI Dimming

LED Voltage Dimming

HID,HPS LAMP

Model

ADSLC-1-LC

ADSLC-1-LP

ADSLC-1-DL

ADSLC-1-LV

ADSLC-1-HPS

Max Rated Current in ON/OFF Power Section

1(4)A

1(4)A

1(4)A

1(4)A

4A

Lamp Max Peak Current

20A

20A

20A

20A

200A

Max Rated Voltage in ON/OFF Power Section

AC100V~AC240V

AC100V~AC240V

AC100V~AC240V

AC100V~AC240V

AC100V~AC240V

Voltage In Control Output

DC12V

DC35V (OC.)

DALI 16V

DC 0V ~ DC10V

-

Max Current in Control Output

10mA

10mA

250mA

6mA

6mA

Environment Conditions

-20 ~ 50, MAX 95% RH

Communication

LONWORKS PLC

Standard PROTOCOL(LONMARK)

Outdoor Luminaire Controller

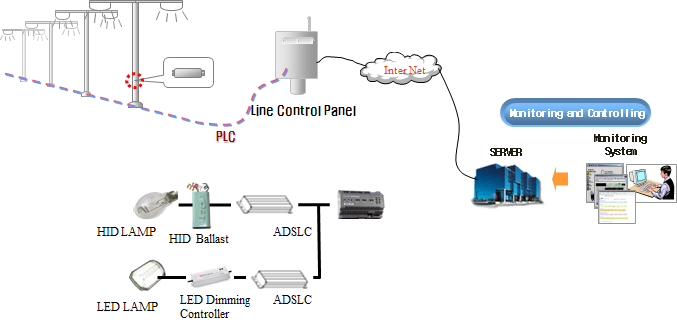

System Configuration
