 ASG-03
-
This is a gateway module for the serial communication interface of the LonWorks network
|
| |
| |
 Product features
|
 |
| |
Interface between the serial communication devices and the LonWorks network |
| |
Support for RS-232C and RS485 communication channels |
|
 |
|
|
|
 ASG-03 |
|
| |
| product specifications |
Item |
Description |
Processor Type |
FT5000 |
Transceiver Type |
FT-X3 |
Processor Clock |
10MHz |
Memory |
64KB RAM,16KB ROM,42KB EEPOM |
Comm. Media |
TP(Twisted Pair Line), RS-232C, RS485
|
POWER |
15~30 VAC/VDC |
Protocol |
ANSI/EIA/CEA 709.1 Lon Talk Protocol,
ANSI/EIA/CEA 709,3 Twisted Pair Line |
Dimension |
92(W) x 96(H) x 82(D) mm |
Operation
Temp./Humidity |
-10~50℃, 0~90% |
Mounting |
Wall mount type or Din Rail Base Plate type |
|
|
|

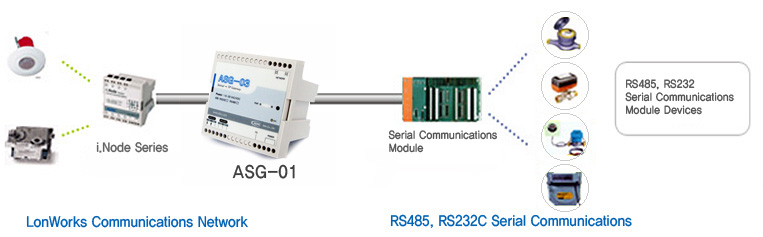

System configuration |
 |
|
|
|
| |
|
|
 |
|
|
| |
 |
|
|
| |
|
| |
|
