ARPP - When it gets distant from the LonWorks power line network, the signal is likely to get attenuated. In that case, this system plays the role of a repeater that can regenerate and deliver the transmitted but attenuated signals again.

Product features
  LonWorks power line Repeater
ARPP

Product specifications

Item

Description

Processor Type

T P(FT3150+FT-X1)+PL(PL3150+1:1TR)

Transceiver Type

Processor Clock

10MHz

Memory

AT29C512(32K Flash Memory)

Comm. Media

T P(Twisted-pair Line) PLC(Power Line Communication),

POWER

100~240 VAC, 50/60Hz

Protocol

ANSI/EIA/CEA 709.1 Lon Talk Protocol, ANSI/EIA/CEA 709.2 Power Line,
ANSI/EIA/CEA 709,3 Twisted Pair Line

Dimension

92(W) x 96(H) x 82(D) mm

Operation

-10~50℃, 0~85%

Temp./Humidity

Mounting

Wall mount type or Din Rail Base Plate type

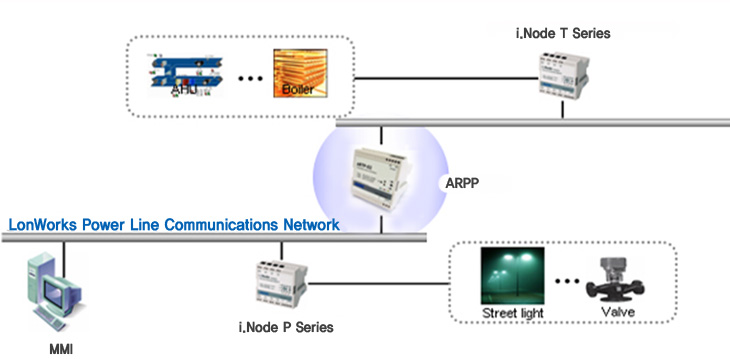

System configuration
