A-GATE - This is an internet gateway that has adopted the LonWorks flatform (ANSI/EIA/CEA 709.1) and is used exclusively for LonWorks that is a standard for the open distributed control in the industrial automation control sector.

This will help connect a general wired or wireless internet to the 110/220V line with LonWorks-based control network communication channel, and can be used effectively in overall industries related to home automation, building automation and factory automation.




A-GATE

Product Features
  ARM7 Core mounted Real time support. An industrial control device with TCP/IP embedded
  Convenient system management through an embedded web server Design of multiple/distributed controllers between different types of devices through TCP/.IP and Fieldbus.
  Encryption algorithm for the network connection
Product Specifications

Item

Description

Processor Type

PL3120, STM32F, 103RET6

Transceiver Type

Processor Clock

10MHz(PLC), 8MHz(STM)

Memory

AT29C512(32K Flash Memory)

Comm. Media

PLC(Power Line Communication), LAN, USB

POWER

100~240 VAC, 50/60Hz

Protocol

ANSI/EIA/CEA 709.1 Lon Talk Protocol,
ANSI/EIA/CEA 709.2 Power Line

Storage media

USB memory

RTC

Real Time Clock

Serial

RS-232C

LAN

TCP/IP

Dimension

92(W) x 96(H) x 82(D) mm

Operation
Temp./Humidity

-10~85℃, 0~85%

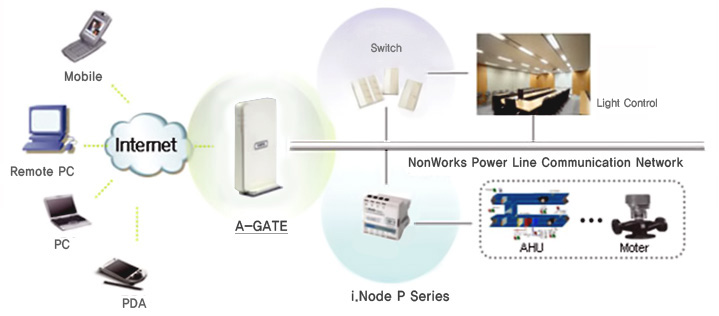

System Configuration
