ARTP-02 - This is a router module for the communication between the LonWorks power line channel and the PT line.

Product Features
  Communication interfacing between the LonWorks power line and the TP line network.
  Used as a repeater when a long-distance communication is needed.
  Network communication traffic control through the filtering function.
ARTP-02

Product Specifications

Item

Description

Processor Type

T P(FT3150+FT-X1)+PL(PL3150+1:1TR)

Transceiver Type

Processor Clock

10MHz

Memory

AT29C512(32K Flash Memory)

Comm. Media

T P(Twisted-pair Line) PLC(Power Line Communication),

POWER

100~240 VAC, 50/60Hz

Protocol

ANSI/EIA/CEA 709.1 Lon Talk Protocol, ANSI/EIA/CEA 709.2 Power Line,
ANSI/EIA/CEA 709,3 Twisted Pair Line

Dimension

92(W) x 96(H) x 82(D) mm

Operation

-10~50℃, 0~85%

Temp./Humidity

Mounting

Wall mount type or Din Rail Base Plate type

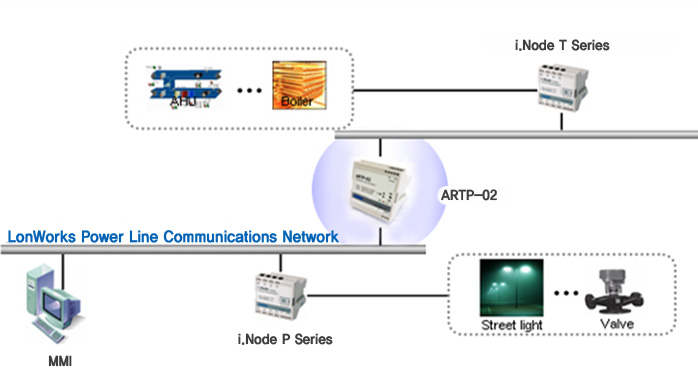

System Configuration
