ALCL-S8AS As a lighting controller that acquired the LonMark3.2, ALCL-S8AS provides 8 latch relays. It also provides assured connection with the LonWork network while excellently performing in the effective buildings management as well as in saving energy.

ALCL-SBAS As the features of ALCL-SBAS, lamp actuator objects and the scheduling function are embedded, making it unnecessary to install an additional scheduler, while it is possible to configure the lighting in various ways and LonWork FTT-10A free topology is adopted as default.
ALCL-S8AS

Product Features
  8 individual latch relays Plug-in function that can be easily used by users
  Scheduling function embedded LonMark 3.2 acquired
  Various types of lighting controllers can be used. Each relay output to be displayed through LED
  Easy to install Echelon link-power coupling communication technology applied
Product Specifications

Item

ALCL-S8AS

Processor Type

Neuron FT3150

Transceiver Type

FT-X1

Processor Clock

10MHz

Memory

AT29C512(32K Flash Memory)

Comm. Media

TP(Twisted Pair Line)

POWER

24VAC, 20mA Min./1A Max, 50/60Hz

Protocol

ANSI/EIA/CEA 709.1 Lon Talk Protocol
ANSI/EIA/CEA 709,3 Twisted Pair Line

Dimension

100(H) x 60(W) x 45(D) mm

Temp./Humidity

0 ~ 50℃, 20 ~ 90% RH

Mounting

Wall mount type or Din Rail Base Plate type

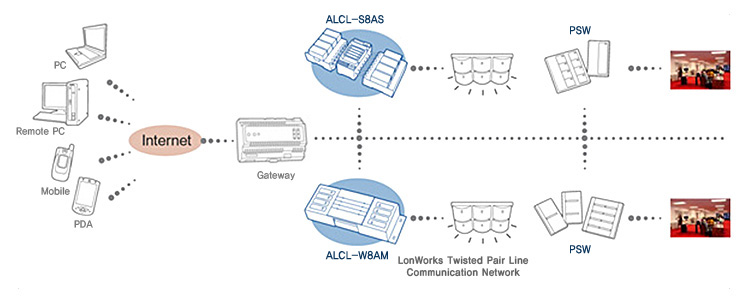

System Configuration
