The LonWorks technology system based lighting controller (ALCL-W8AS) is easy to install and operate. The system can provide superb efficiency. Diverse user-friendly functions such as individual control, group control, pattern control, and schedule control care are supported.

With easy installation due to its simple and strong design in suitable size, d, the product has been applied to large size buildings, apartment building with shops on the ground floors.
ALCL-W8AS

Product Features
  8ch latch relays combined, making it easy to install the distributing board Scheduling function embedded
  Interlocked with a programable switch module Previous state can be maintained at power recovery after the power failure
  Lighting control based on group as well as step
Product Specifications

Item

ALCL-W8AS

Processor Type

Neuron FT3150

Transceiver Type

FT-X1

Processor Clock

10MHz

Memory

AT29C512(32K Flash Memory)

Comm. Media

TP(Twisted Pair Line)

POWER

24VAC, 20mA Min./1A Max, 50/60Hz

Protocol

ANSI/EIA/CEA 709.1 Lon Talk Protocol,
ANSI/EIA/CEA 709,3 Twisted Pair Line

Dimension

100(H) x 60(W) x 45(D) mm

Temp./Humidity

0 ~ 50¡É, 20 ~ 90% RH

Mounting

Wall mount type or Din Rail Base Plate type

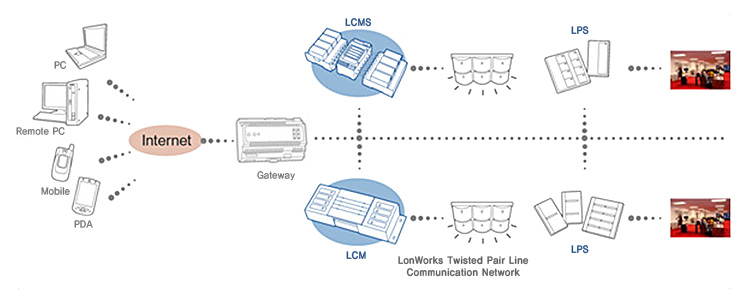

System Configuration
