ALCL 4ch series products provide 4 latch relays. They also provide assured connection with the LonWork network while excellently performing in the effective buildings management as well as in saving energy.

As the features of ALCL-14, the control commands and the relay state can be compared to detect errors and carry out retrials. Therefore, it has enhanced the reliability of controlling. It responds to the traffic on the network using the configuration property appropriately. In addition, as FT5000 is applied, the cost for the LonMaker Credit can be reduced (when the LoMaker Toubo latest service pack is installed).
ALCL 4ch series

Product Features

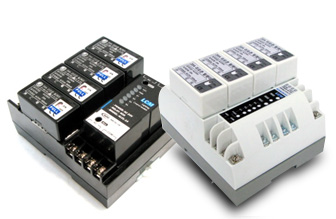

  4 individual latched relays Plug-in function that can be used easily by users
  Various types of lighting controllers can be used. Each relay output to be displayed through LED
  Easy to install
Product Specifications

Item

ALCL-14 series

Processor Type

Neuron FT3120 FT5000

Transceiver Type

FT-X1 FT-X3

Processor Clock

10MHz

Memory

2KB RAM, 12KB ROM, 4KB EEPOM on-chip 64KB RAM,16KB ROM,42KB EEPOM

Comm. Media

TP(Twisted Pair Line)

POWER

24VAC, 20mA Min./1A Max, 50/60Hz

Protocol

ANSI/EIA/CEA 709.1 Lon Talk Protocol, ANSI/EIA/CEA 709,3 Twisted Pair Line

Dimension

120(H) x 100(W) x 65(D) mm

Temp./Humidity

0 ~ 50℃, 20 ~ 90% RH

Mounting

Din rail base plate type

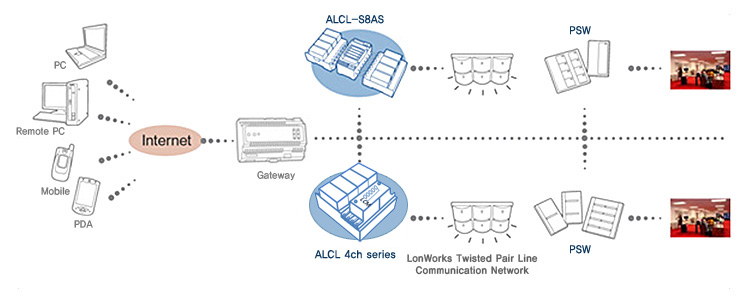

System Configuration
