i.Node series -The i.Node series products are network I/O devices that have adopted the LonWorks flatform (ANSI/EIA/CEA 709.1) and are used exclusively for LonWorks that is a standard for the open distributed control in the industrial automation control sector.
LonWorks-based controlling network can be built by connecting various digital and analog sensors and actuators to the iNode series products, receiving values from the sensors, and controlling the actuators.
Provides Digital Inpu 8ch
The system’s stability and scalability have been enhanced due to the intelligent distributed control method
Easy to install and maintain as the system is based on a network.
Interactive communication, multi-targeting and multi-controlling are made possible
Digitalized I/O processing due to intelligent devices
Easy to install and manage due to the LNS plug-in program. A user interface is supported.
AT29C512(32K Flash Memory)
PLC(Power Line Communication)
100~240 VAC, 50/60Hz
ANSI/EIA/CEA 709.1 Lon Talk Protocol,
ANSI/EIA/CEA 709.2 Power Line
Relay Output, 3A Max
92(W) x 96(H) x 82(D) mm
Wall mount type or Din Rail Base Plate type
Select among the digital input detection functions: Direct, One shot, Togle, Pulsed, Override

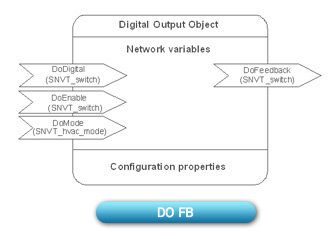

Set the digital output control functions: Direct, One shot, Togle, PWM, One pulse, Preset, Override
Select among the analog input detection functions : Sensor type and range setting, Filter setting, NV range & offset setting
User table setting, Upper limit/Lower limit alarm setting, Override
Set the digital output control functions: Preset table, Input range setting, Scaling, Offset, Override
Set the PID control function: P/I/D factor setting, and P_bias, Deadband, and I limit setting
Input NV comparison function: Equal, Not Equal, Greater than equal, Less, And, Or, Or not
Input NV comparison and operation functions: Logic, Encoder, Counter, On time, And, And not, Or, Or not, Equal
Not equal,Greater than equal,Less,Selector,Higher,lower,Add.
Input NV comparison and operation functions: Equal, Not equal, Greater than equal, Less, Select, Higher, lower
