PLC-3210 - This is a core module, equipped with PL3120 CPU, to be installed in PLC (Power Line Communication) products that use the LonTalk protocol

Product Features
  LonWorks power line communication core module
  PL3120 full I/O supported
  Crystal embedded
  Optimal design of the size for housing the product
  The 1.27mm pitch 29-pin standard is applied

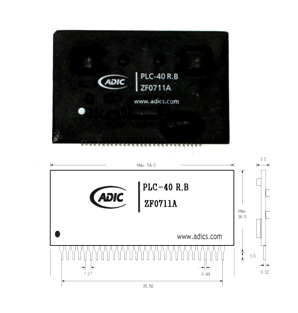

PLC-40

Product Specifications

Item

Description

Processor Type

PL3120

Transceiver Type

Processor Clock

10MHz

I/O

12 Pin full I/O support

Comm. Media

PLC(Power Line Communication)

POWER

5VDC, 12VDC Input

Protocol

ANSI/EIA/CEA 709.1 Lon Talk Protocol, ANSI/EIA/CEA 709.2 Power Line

Comm. Signal current

2A

Output Power

10Vp-p, 2A

Dimension

35.7(W) x 52.8(H) x 3(D) mm

Operation
Temp./Humidity

-40 ~ +85℃, operating and non-operating 20 ~ 95% RH@50℃
